Sterilization Equipment
Steam Sterilization Equipment
Class B Table Top Autoclave
Class B autoclaves are great space-savers built for high performance. They are microwave-sized autoclaves that fit easily on the counters of busy clinics and dental offices. Available in the compact sizes, the Class B is the top-of-the-line of tabletop autoclaves.
The main advantage of Class B autoclaves is the use of a vacuum pump for both removing air and drying the load. Class B autoclaves are able to remove more than 99% of the air inside the chamber, ensuring no trapped air that would prevent steam from reaching the load surface, thus killing microbial life on the load, without external hookups to water or steam (some tabletop autoclaves are connected to water pipes for auto-filling, so operators don’t need to fill them). In other words, the Class B tabletop autoclave is the most advanced “plug-n-play” model on the market today.
It adopts European B Standard with 3-times pre-vacuum preceding vacuum drying. Residual humidity is less than 0.2%. Mini printer can be attached to record the process of sterilization.
Sterile Healthcare Technologies’ Class B Autoclave is a highly reliable class B autoclave, suitable for intensive use of several cycles per day. That is why this autoclave is suitable for medium to large Eye and dental clinics.
Product Description
- Vacuum measurement reaches-0.8bar
- Water quality sensor
- Negative Pressure Display
- Door Locking Safety Switch
- Options for Built in Printer or USB
- Multiple Safety Features
- Temperature Cycles-121°C & 134°C
- Provision to connect External Printer
- Pressure and Temperature Overload Protection
- Rapid Sterilization: Complete sterilization process in just 25 minutes, maximizing efficiency without compromising effectiveness.
- Touch Digital LCD Display: Intuitive interface for easy monitoring of temperature, time, alarms, and other essential parameters during operation.
- Double Door Limit Protection: Enhanced safety with a dual-door limit protection device to prevent accidental opening during operation.
- Over-Temperature Automatic Protection: Utilizes an automatic protection system from Texas, US, ensuring safe operation by preventing overheating.
- Precision Pressure Sensor: MOTOROLA precision pressure sensor with silicon single crystal semiconductor gauge for accurate pressure monitoring, ensuring reliable performance over a 10-year service life.
- Italian Water Pump: Low-noise pump with a lifetime of up to 100,000 cycles, ensuring quiet operation and longevity.
- High-Speed Control Chip: American MCP high-speed control chip with the latest PID control algorithm for stable and precise performance. Coordinated hardware and software protection measures ensure low failure rates.
- Built-in Printer and Data Output Storage: Includes a built-in printer and data storage for convenient documentation and record-keeping.
- Sterilization Procedures: Offers 6 sterilization procedures and 2 test procedures to accommodate various sterilization needs.
- User-Friendly Operation: Designed for easy and convenient operation, meeting the diverse needs of dental professionals.
Features
| Sterilization Class | Category B |
| Sterilization Temperature | 121 cent and 134 cent |
| Special Event | HIV, HIV long-term sterilization program |
| Dry System | vacuum drying system |
| Display | LCD display |
| Languages | English, Spanish, Italian, French, Portuguese, Russian |
| Test the System | Bowie and Dick test Vacuum test Helix test |
| Control Precision | Temperature: 0.1C Pressure: 0.1Kpa |
| Sterilization Data | built in printer |
| Security System | Pressure or Temperature Alarm System Over Relief Valve Hand Lock Door Load Safety |
| Water Supply System | Easy to clean build-in water tank Capacity : 3.5 or 4L |
| Tray Holder | 3 Layers Tray Holder with 5 Trays |
| Cell | Medical Stainless Steel 304 Maximum Working Pressure:2.3Bar Minimum Working Pressure:-0.9Bar Maximum Temperature:145C |
| Operating Temperature | 5 |
| Noise | <50db |
| Water Consumption in one cycle | There is a special provision |
| Colour | Purple, Green, Grey, Tiffany |
ETO Sterilizer – Fully Automatic
Ethylene oxide gas sterilizers (ETO) are designed to be used with ethylene oxide gas cartridge to provide a safe and effective low temperature sterilization process for hospitals ,Cath labs, Medical institutions, Eye specialists, ortho specialists, General Surgery centers, gynec care units, Cardio Thoracic surgeon, interventional cardiologists, Plastic /Cosmetic surgeons, Neuro Surgeons, Research Centers, Specialty Laboratories ,Pharmaceuticals applications.
Brief applications for ETO Sterilizer
- Surgical Staplers/Staples, Sutures, Sharps.
- Rubber and Plastic tubing, surgical gloves.
- Cardiac Pacemakers, Artificial kidney machine, Heart lung Machine.
- Respirator & Inhalation therapy supplies.
- Fiber optic Endoscope surgical telescope and other Optical Medical Equipment.
- Dental Instruments
- Ophthalmic Instrument
- Plastic & Other Instruments (e.g. Bipolar Wire, Bipolar forceps, Cautery pencil, ventilator circuit, light Handle, Guide wire, I-Gel, Creep Bandage, Bio feather Needle, Micro Drill etc.
Characteristics for ETO Sterilizer
- Cabinet type Sterilizer with elegant look, less space requirement for installation.
- The machine is constructed with heavy duty Stainless steel 304/316.
- Uniform Temperature Control.
- Automatic Gas Injection.
- Automatic degassing & Aeration
- Online Printing
- USB data storage for data store and graph
- Plastic & Other Instruments (e.g. Bipolar Wire, Bipolar forceps, Cautery pencil, ventilator circuit, light Handle, Guide wire, I-Gel, Creep Bandage, Bio feather Needle, Micro Drill etc.

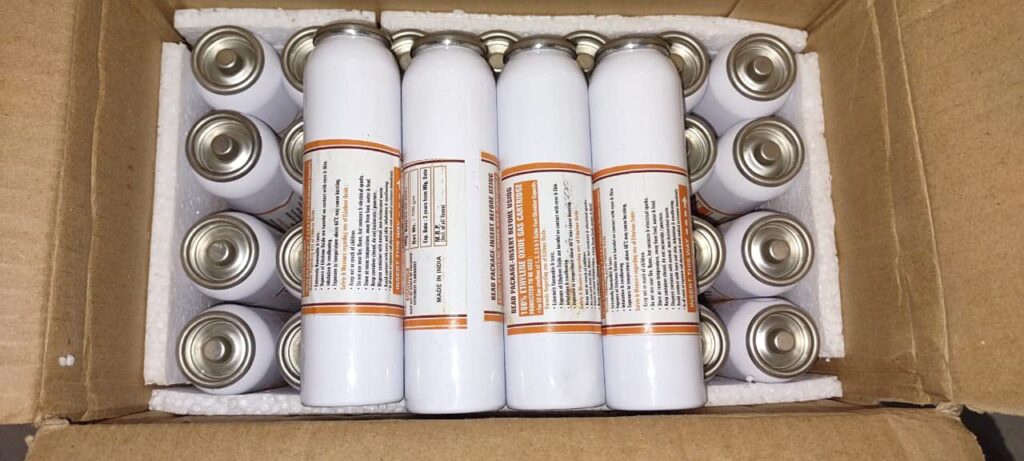

ETO Cartridges
Ethylene Oxide Cartridges are disposable and contain 100% ethylene oxide. It has various sizes depending on chamber volume. These cartridges are manufactured under stringent conditions
Vertical Autoclave
Automatic/Semi-Automatic
The Sterile Healthcare’s Autoclave Vertical is a robust and efficient sterilization solution designed to meet the rigorous demands of medical and laboratory environments. Crafted with precision engineering, this autoclave offers unparalleled performance and reliability. Its vertical design optimizes space while providing ample capacity for sterilizing instruments, glassware, and other critical equipment. The Sterile Healthcare’s Autoclave Vertical is an essential tool for ensuring a sterile and safe environment, adhering to the highest standards of infection control.
Features
- Unique Double/Triple Wall Design
- Heavy Duty Jacket
- Fully Automatic Operation
- Microprocessors Based PID Controller with Dual Display for Temperature and Time
- Purge Available
- Excellent Performance in Drying
- Reduced loading height
- Capacity: Available in multiple capacities, the vertical chamber is designed for efficient use of space while providing ample room for sterilization.
- Durable Construction: Made from high-quality stainless steel, the autoclave is resistant to corrosion, ensuring longevity and ease of maintenance.
- Advanced Control System: Equipped with a user-friendly control panel, allowing precise adjustments for temperature and pressure settings.
- Safety Mechanisms:Includes multiple safety features such as pressure release valves, automatic shutoff, and overheating protection to ensure safe operation.
- Rapid Sterilization Cycle: Designed for quick and effective sterilization, reducing downtime and increasing throughput.
- Versatile Use: Suitable for a wide range of applications, including medical, dental, and laboratory use, making it a versatile addition to any facility.
- Enhanced Sterilization Efficiency: The Autoclave ensures thorough sterilization, significantly reducing the risk of contamination and infection.
- User-Friendly Operation: Intuitive controls and a clear display make it easy to operate, even for users with minimal training.
- Space-Saving Design: The vertical configuration is ideal for facilities with limited space, providing high capacity without compromising on footprint.
- Cost-Effective: With its durable construction and efficient performance, this autoclave offers a long-term, cost-effective sterilization solution.
- Safety Assurance: Built-in safety features protect both the equipment and the operator, ensuring peace of mind during operation.
Horizontal Autoclave - Automatic
Horizontal Autoclave made with triple walled & horizontally mounted on a sturdy heavy stainless steel. Pressure is adjustable from 5-20 PSI. It is fitted with pressure gauge, safety valve, steam release valve and automatic pressure control switch. As per the international standards and guidelines, our triple walled horizontal autoclave has temperature of 121 C. However, for specific requirements, our autoclaves can be upgraded up to 134 C. Automatic vacuum breaker is provided to break the vacuum in case of formation of vacuum due to steam condensation.
Options: Automatic low water level cut-off device fitted for the general safety. Opt for PLC controller instead of the digital controller & double door.
Other Portable Autoclave
